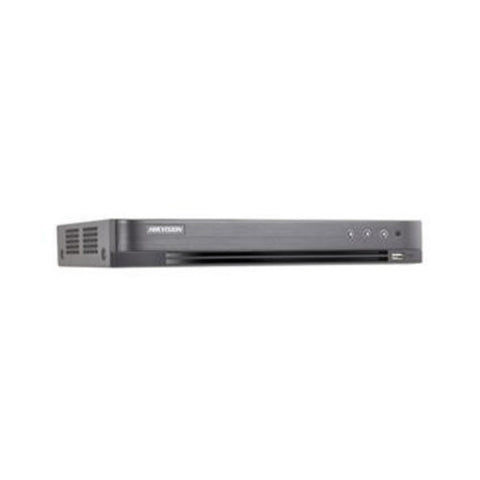

Hikvision Turbo HD DVR 8MP 4CH METAL DS-7204HTHI-K1

Brand

Hikvision

Product Code

DS-7204HTHI-K1

Product Type

Digital Video Recorder

Power Supply

12V DC

Consumption

≤ 15 W

Working Temperature

-10 oC to +55 oC (14 oF to 131 oF)

Working Humidity

10% to 90%

Audio Input

4-ch

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Analog and HD-TVI video input

4-ch,BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection

Supported camera types

Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Support AHD input: 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVBS input

Video Input Interface

BNC (1.0 Vp-p, 75Ω)

Audio Compression

G.711u

Audio Input Interface

RCA (2.0 Vp-p, 1 kΩ)

Two-way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI/VGA Output

VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Bit Rate

32 Kbps-16384 Kbps

Stream Type

Video/Video&Audio

Two-way Audio

1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Audio Output

1-ch RCA(Linear, 1kΩ)

Audio Bit Rate

64kbps

Dual Stream

Support

Playback Resolution

8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF

Synchronous Playback

4-ch

Interface Type

1 SATA Interface

Capacity

Up to 10 TB capacity for each disk

Network Interface

1; 10M / 100M / 1000M self-adaptive Ethernet interface

USB Interface

1 USB 2.0 Interface & 1 USB 3.0 Interface

Serial Interface

1; standard RS-485 serial interface, half-duplex

Dimensions (W × D × H)

315 × 242 × 45 mm

Weight (without HDD)

≤ 1.5 kg (3.3 lb
