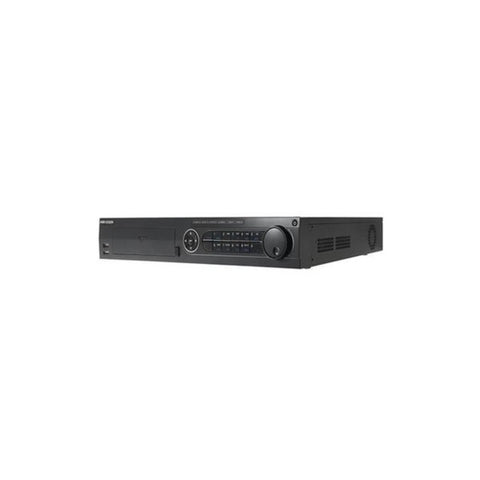

Hikvision NVR 32CH 160/80mbps 4SATA DS-7732NI-E4

Brand

Hikvision

Product Code

DS-7732NI-E4

Product Type

Network Video Recorder

IP video input

32-ch

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1kΩ)

Outgoing bandwidth

80Mbps

Incoming bandwidth

160Mbps

Remote connection

128

HDMI/VGA output

1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
1024 × 768 /60Hz

Recording Resolution

6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Frame Rate

Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)

Audio Output

1-ch, RCA (Linear, 1kΩ)

Live view / Playback

6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Capability

16-ch@4CIF, 12-ch@720P,
6-ch@1080P

SATA

4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs

Capacity

Up to 6TB capacity for each HDD

Network Interface

2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces

Serial Interface

RS-232; RS-485;

USB Interface

Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0

Alarm In

16-ch

Alarm Out

4-ch

Power Supply

100~240VAC

Consumption(without hard disk and POE)

≤ 20W

Working Temperature

-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)

Working Humidity

10 % ~ 90 %

Chassis

19-inch rack-mounted 1.5U chassis

Dimensions

445 × 390 × 70mm

Weight

≤ 4 Kg
