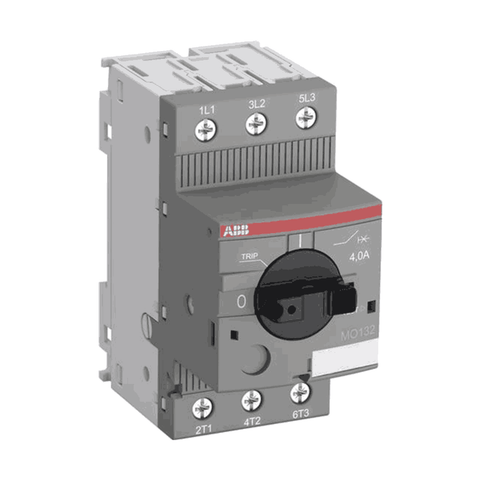

ABB Manual Motor Starter Three-Pole MO 132

Product Description

• 3 Pole Power Manual Motor Starter with Rotary Knob Control magnetic only type : protection against short circuit

• The MO132-0.16 manual motor starter magnetic only is a compact 45 mm width device with a rated operational current of Ie = 0.16 to 32 A

• This device is used to manually switch on and off loads/motors and to protect them reliably and without the need for a fuse from short-circuits.

• The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 V AC.

• A combination together with overload relays or motor controllers allows the protection of motors. Further features are the built-in disconnect function, trip-free mechanism and a rotary handle with a clear switch position indication.

• The manual motor starter magnetic only is suitable for three- and single-phase applications.

• The handle is lockable to protect against unauthorized changes.

• Number of Poles : 3

• Product Net Weight : 0.215 kg

• Product Net Width : 45 mm

• Product Net Height :90 mm

• Product Net Depth / Length : 86.75 mm

• Rated Operational Voltage : Main Circuit 690 V AC

• Rated Frequency (f) : Main Circuit 50 Hz/Main Circuit 60 Hz

• Pollution Degree : 3

• Degree of Protection : Housing IP20,Main Circuit Terminals IP10

• Mounting Position : Position 1 to 6

• Contact Position Indication : ON / OFF / TRIP

• Actuator Type : Rotary Handle

• Electrical Durability : 50000 cycle

• Mechanical Durability : 100000 cycle

• Terminal Type : Screw Terminals
