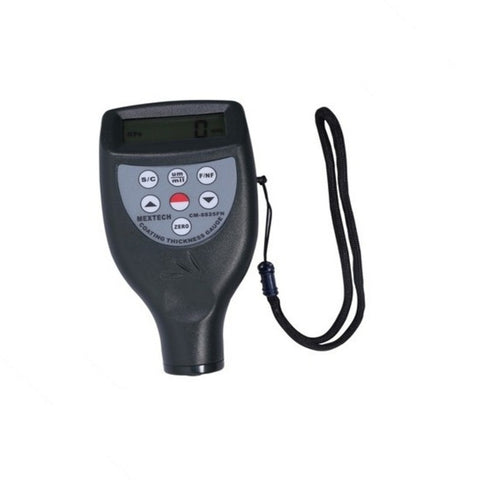

Buy Mextech Coating Thickness Meter 0-1250 Aµm CM8825FN at best price

Product Description

Accessories: Carrying Case, Operational Manual, Iron & Aluminum Substrate, Calibration foil, RS-232C Cable & Software
Auto Power Off
Application
The “F” Probe Measure the Thickness of Non-Magnetic Coating (Paint, Plastic, Porcelain, Enamel, Copper, Zinc, Aluminium, Chrome etc) on magnetic materials(Iron, Nickel etc)
The “NF” Probe Measure the Thickness of Non-Magnetic Coating (Anodizing, Varnish Paint, Enamel Plastic Coating, Powder etc.) on Non-magnetic materials

Product Spacification

Brand	Mextech
Product Code	CM8825FN
Product Type	Coating Thickness Meter
Display	4 Digit Display (10mm LCD)
Measuring Range	0-1250um/0-50mil(In Built Probe)
Accuracy	±1-3% or ±2.5um
Resolution	1/1
Operating Principle	Magnetic & Non Magnetic Induction (F/NF)
Measuring Area	10mm
Operating Temperature & Humidity	0⁰C to 50⁰C , ≤80%RH
Calibration	Self Calibration
Battery Indicator	Low Battery Indication
Power Supply	4×1.5V AAA(UM-4)Battery
Buttons	5 Buttons
Display Size	41 X 13 mm
Weight	81 gm
Dimension	126 x65x27 mm
Warranty	As Per Manufacturer Terms And Condition

Mextech Coating Thickness Meter 0-1250 Aµm CM8825FN
