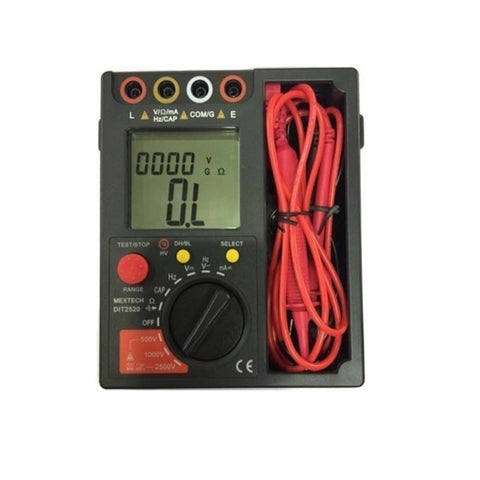

Mextech Insulation Resistance Tester Range 0 to 20 G Ohm DIT-2520

Product Description

• 3 ¾ Digits Jumbo LCD display with unit annunciator & backlit, max reading 3999.

• Test of insulation resistance at 500V/ 1000V/ 2500V, with high driving capacity (≥ 15mA)

• Dual display of the testing voltage and insulation value simultaneously

• Data hold, Auto Ranging multimeter

• User panel calibration

• Overload protection

• Safety as per IEC1010-1 Cat.II 1000V

• DCV: 400m/4/40/400/1000V, ± 0.5%

• ACV: 4/40/400/700V, ± 0.8%

• DCA: 40m/400mA, ± 0.8%

• ACA: 40m/400mA, ± 1%

• OHM: 400/4K/40K/400K/4M/40MΩ, ± 0.8%

• CAP: 40n/400n/4µ/40µF, ± 3%

• Frequency: 40/400/4K/40K/400K/4MHz, ± 0.5%

• Audible continuity buzzer: <380Ω

• Battery: 1.5V x 6, AA size

• Dimension: 170 x 156 x 64mm

• weight: 650 g

• Short circuit output: ≥ 15mA

• Measuring time: 1/2/10 min selectable

• Warranty: As Per Manufacturer Terms And Condition
